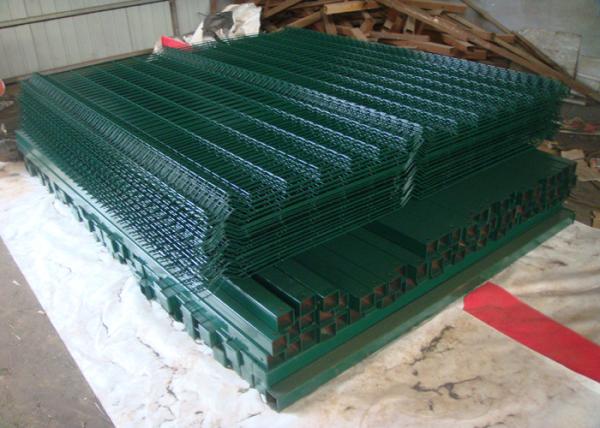

High Quality 3D Welded Fence Fold Panel 100X200MM With Peach Post 40X70MM
Welded Wire Mesh Features
Welded Wire Mesh is made of high quality stainless or steel wire.
Welded Wire Mesh has various configurations and sizes.
Used for the loose strata to avoid falling rocks.
Suitable for shotcrete applications
Range of sizes to suit roadway width and bolting patterns.
Easy installation
Available in black or hot dip galvanized
Welded Wire Mesh Fence Panel Style:
Electro or Hot dipped galvanized after or before welding
Stainless steel wire welded wire mesh
PVC coated galvanized welded wire mesh
Black wire/ no coated welded wire mesh
| Welded Mesh Fence Panel |
| Mesh-A-T1 | Mesh-A-T2 | Mesh-A-T3 | Hight | Width | Line Wire x Cross Wire | Nos. of Curves | Post Length | Nos of Brackets |
 |  |  | 1230 | 2500/2750/3000 | 4.0×4.0 4.0×4.5 4.0×5.0 4.5×4.5 4.5×5.0 5.0×5.0 | 2 | 1600 | 3 |
| 1530 | 2500/2750/3000 | 3 | 2000 | 3 |
| 1730 | 2500/2750/3000 | 3 | 2200 | 4 |
| 2030 | 2500/2750/3000 | 4 | 2500 | 4 |
| 2230 | 2500/2750/3000 | 4 | 2800 | 4 |
| 2430 | 2500/2750/3000 | 4 | 3000 | 5 |
| 3030 | 2250/2500 | 6 | 4000 | 6 |
| ♦Mesh-panel-type-B and C are different type for mesh size. You can contact us for more information about them. |
| Curved Welded Wire Mesh Panel |
| Panel Height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
| 0.63m 1.03m 1.23m 1.53m 1.73m 1.83m 2.03m 2.43m | 2.0m 2.5m 3.0m | Gal + PVC Painted 3.85mm/4.0mm 4.85mm/5.0mm Gal + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm | 50*200mm 55*200mm 50*150mm 55*100mm | 2 |
| 2 |
| 2 |
| 3 |
| 3 |
| 4 |
| 4 |
| 4 |
Welded Wire Mesh Panel Application
Welded wire mesh is used in industry and agriculture building, Transportation and mining for all such
purposes as poultry houses, Egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence.
